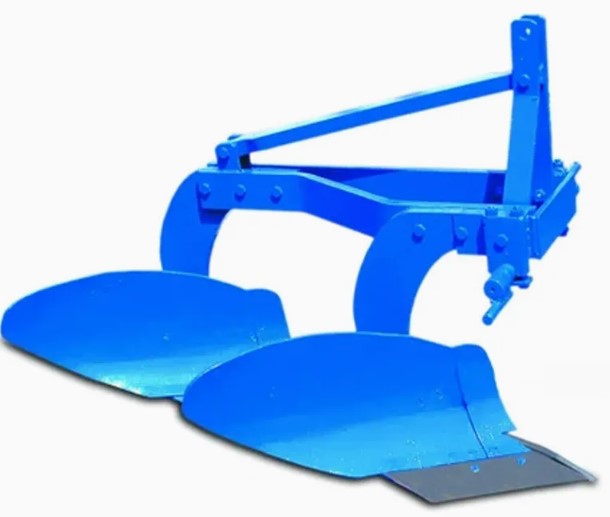

PLOUGHREVERSIBLE MB PLOUGH (SL-3200 MB)
PLOUGH/REVERSIBLE MB PLOUGH
Model Name – SL-3200 MB
Type Of Hitch Attachment::Linkage – 3-point linkage
Type MB Plough – Non reversible type
Mould Board Used – General purpose Mould Board
Number Of MB Plough Attached To Beam – 2
Working Depth Control Mechanism – Hydraulic
Beam Rotation Control Mechanism – NA for non reversible MB Plough
Warranty In Years – 1
Material Of Beam::Frame – Alloy Steel
Size Of Beam::Frame In Mm – 1100
Material For Plough Blade – HCS
Height Of Plough In Inch – 16
Consecutive Plough Distance In Inch – 26
Slice Blade Thickness In Mm – 9
Working Depth In Inch – 12
-
Model Name:
-
SL-3200 MB – A durable and efficient non-reversible mould board plough designed for deep and effective primary tillage operations.
-
-
Type of MB Plough:
-
Non-reversible type, ideal for straight ploughing in single direction passes, simplifying design and reducing maintenance.
-
-
Hitch Attachment Type:
-
Comes with a 3-point linkage system, ensuring secure and universal attachment to standard tractors.
-
-
Mould Board Type:
-
Equipped with a general-purpose mould board, suitable for a wide variety of soil types including loamy and clayey soils.
-
-
Number of MB Ploughs Attached to Beam:
-
2 mould boards mounted on a strong beam for effective soil inversion and residue mixing.
-
-
Working Depth Control Mechanism:
-
Hydraulically controlled, allowing precise adjustment of ploughing depth to suit soil and crop requirements.
-
-
Beam Rotation Control Mechanism:
-
Not applicable (NA) due to the non-reversible configuration, simplifying usage and reducing operational complexity.
-
-
Beam / Frame Material:
-
Constructed from high-strength alloy steel, ensuring durability and resistance to impact and bending during deep tillage.
-
-
Beam / Frame Size:
-
Measures 1100 mm, providing stable support and optimal spacing for attached mould boards.
-
-
Material for Plough Blade:
-
High Carbon Steel (HCS) blades for sharpness, wear resistance, and extended operational life.
-
-
Height of Plough:
-
16 inches, ensuring sufficient clearance and soil turning efficiency.
-
-
Consecutive Plough Distance:
-
26 inches spacing between ploughs, allowing effective soil turnover without clogging.
-
-
Slice Blade Thickness:
-
9 mm thick slice blades offer excellent durability and efficient soil cutting performance.
-
-
Working Depth:
-
Capable of working up to 12 inches deep, suitable for breaking hard soil layers and improving root zone aeration.
-
-
Warranty:
-
Backed by a 1-year warranty, covering manufacturing defects and offering assurance of quality and reliability.
-
