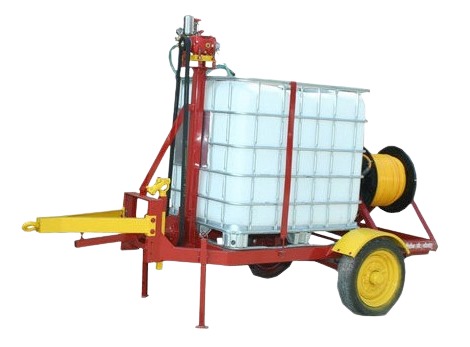

TRACTOR OPERATED HTP SPRAYER (SL-2200)
TRACTOR OPERATED HTP SPRAYER
Model Name – SL-2200
Nozzle Material – Tungsten Carbide
Warranty in Years – 2
Tank capacity in Litres – 400
Power Required in HP – 20
Discharge rate at rated speed and pressure in ml/minute – 8500
Hose length in meter – 140
Length of spray gun in mm – 560
Overall Dimension of Tractor operated HTP Sprayer ( L x W x H) in mm x mm x mm – 1310x1205x1360
Overall weight of tractor operated HTP Sprayer in kg – 200
-
Model Name:
-
SL-2200 – A high-performance tractor-operated HTP (High-Pressure) sprayer designed for large-scale spraying operations in agriculture, offering precision, power, and reliability.
-
-
Tank Capacity:
-
Fitted with a 400-liter tank, enabling extended spraying sessions without frequent refills—ideal for covering large agricultural fields efficiently.
-
-
Nozzle Material:
-
Equipped with Tungsten Carbide nozzles, known for exceptional durability, corrosion resistance, and precise spray pattern for uniform chemical distribution.
-
-
Power Requirement:
-
Operates with a minimum power requirement of 20 HP, compatible with a wide range of commonly used farm tractors.
-
-
Discharge Rate:
-
Provides a high discharge rate of 8500 ml/min at rated speed and pressure, ensuring thorough and timely application of pesticides, herbicides, and fertilizers.
-
-
Hose Length:
-
Comes with a 140-meter long hose, allowing a wide spraying radius from the tractor—ideal for reaching distant rows and corners of the field.
-
-
Spray Gun Length:
-
Includes a 560 mm long spray gun, enabling comfortable handling and precision in spray direction and reach.
-
-
Mounting and Operation:
-
Designed for tractor-mounted operation, enhancing mobility and reducing manual effort, while ensuring consistent spray coverage.
-
-
Dimensions (L x W x H):
-
Overall machine dimensions: 1310 x 1205 x 1360 mm, making it compact yet capacious enough for large fieldwork.
-
-
Weight:
-
Weighs 200 kg, reflecting its robust build quality for long-term, heavy-duty use in agricultural environments.
-
-
Application:
-
Ideal for spraying pesticides, fungicides, and liquid fertilizers on crops like cotton, sugarcane, vegetables, fruits, and cereals across medium to large farms.
-
-
Ease of Use:
-
Simple to operate, maintain, and clean; user-friendly design allows even semi-skilled operators to handle it efficiently.
-
-
Warranty:
-
Covered by a 2-year manufacturer’s warranty, offering extended protection and assurance of product quality and durability.
-
