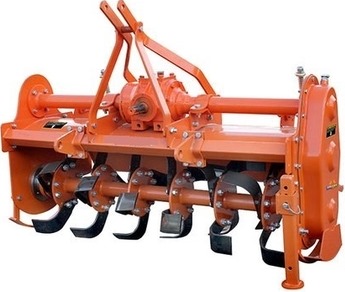

AGRICULTURE ROTAVATOR (SL-2800)

Model Name:

• SL-2800 – A powerful, durable, and precision-engineered rotavator designed for efficient soil preparation, weed control, and seedbed creation in various soil conditions.

Tractor Compatibility:

• Operated through tractor PTO (Power Take-Off), ensuring effective and energy-efficient tilling when connected to standard tractors.

Hitch Attachment Type:

• Comes with a 3-point linkage system, providing secure and universal attachment for most tractors.

Gearbox Type:

• Equipped with a multi-speed gearbox, allowing operators to adjust tilling intensity and rotor speed based on soil type and field requirements.

Side Transmission Drive:

• Uses a gear drive system on the sides for improved power transmission, durability, and reduced maintenance compared to chain drives.

Type of Gear Used:

• Utilizes spur gears, known for efficient torque transfer, mechanical strength, and smooth operation under load.

Chain Drive:

• Not applicable (NA) – The rotavator uses a gear-based drive system for reliability and longevity.

Safety Features:

• Fitted with chain/gear covers to enhance operator safety and protect internal components from dust, debris, and accidental contact.

PTO Speed Required:

• Operates efficiently at 540 RPM, a standard PTO speed compatible with most tractors.

Rotor Speed:

• Delivers a rotor speed of 200 RPM (±10 RPM), offering optimal cutting and soil mixing performance.

Cutting Blade Specifications:

• L-shaped blades with a plane cutting edge, ideal for aggressive soil cutting and deep tillage.

Blade Hardness:

• Edge portion: Hardened to 40–55 HRC, ensuring wear resistance and extended blade life.

• Shank portion: Hardened to 37–45 HRC, providing structural integrity and impact resistance.

Blade Configuration:

• 6 blades per flange, delivering uniform cutting, effective soil pulverization, and residue incorporation.

Blade Balance:

• All cutter blades are dynamically balanced, minimizing vibrations and ensuring smooth operation and longer service life.

Number of Flanges on Rotor Shaft:

• 7 flanges, providing wide coverage and efficient soil engagement in each pass.

Bearing Type:

• Built with ball bearings, offering smooth rotation, reduced friction, and extended durability.

Application:

• Perfect for seedbed preparation, weed management, and moisture conservation—suitable for a wide variety of crops and field conditions.

Warranty:

• Backed by a 1-year manufacturer’s warranty, ensuring quality, reliability, and peace of mind.
