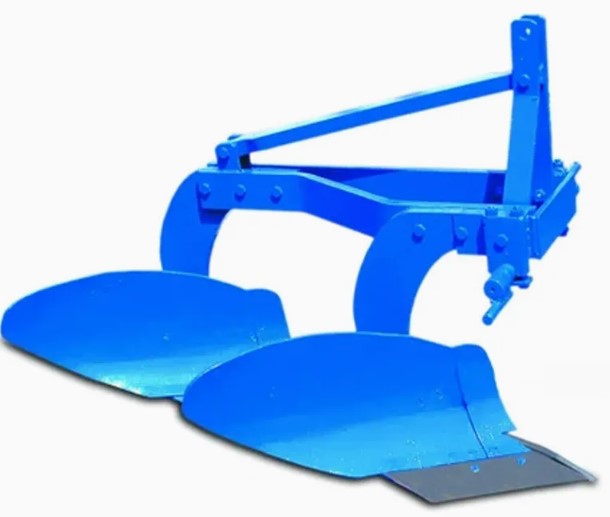

PLOUGHREVERSIBLE MB PLOUGH (SL-3200 MB)

Model Name:

• SL-3200 MB – A durable and efficient non-reversible mould board plough designed for deep and effective primary tillage operations.

Type of MB Plough:

• Non-reversible type, ideal for straight ploughing in single direction passes, simplifying design and reducing maintenance.

Hitch Attachment Type:

• Comes with a 3-point linkage system, ensuring secure and universal attachment to standard tractors.

Mould Board Type:

• Equipped with a general-purpose mould board, suitable for a wide variety of soil types including loamy and clayey soils.

Number of MB Ploughs Attached to Beam:

• 2 mould boards mounted on a strong beam for effective soil inversion and residue mixing.

Working Depth Control Mechanism:

• Hydraulically controlled, allowing precise adjustment of ploughing depth to suit soil and crop requirements.

Beam Rotation Control Mechanism:

• Not applicable (NA) due to the non-reversible configuration, simplifying usage and reducing operational complexity.

Beam / Frame Material:

• Constructed from high-strength alloy steel, ensuring durability and resistance to impact and bending during deep tillage.

Beam / Frame Size:

• Measures 1100 mm, providing stable support and optimal spacing for attached mould boards.

Material for Plough Blade:

• High Carbon Steel (HCS) blades for sharpness, wear resistance, and extended operational life.

Height of Plough:

• 16 inches, ensuring sufficient clearance and soil turning efficiency.

Consecutive Plough Distance:

• 26 inches spacing between ploughs, allowing effective soil turnover without clogging.

Slice Blade Thickness:

• 9 mm thick slice blades offer excellent durability and efficient soil cutting performance.

Working Depth:

• Capable of working up to 12 inches deep, suitable for breaking hard soil layers and improving root zone aeration.

Warranty:

• Backed by a 1-year warranty, covering manufacturing defects and offering assurance of quality and reliability.
