Category: Machinery & Equipment

Showing 1–20 of 34 results

•

  Agriculture Harrow – DISC TYPE (SL-100)

  Agriculture Harrow (Disc Type)
  Model Name – SL-100
  Type of hitch attachment / linkage – 3-point linkage
  Number of Harrow Row on which Cutting Disk Assemble – Double Row
  Shape of Cutting Blade – Concave Disk Type
  Type of Bearing used – Ball Bearing
  Make of Bearing – NBC
  Type of Wheel – Metallic Wheel
  Position of Wheel Assembly on Harrow – Rear
  Warranty in Years – 1
  Material for Cutting Disc – Boron Steel
  Diameter of Cutting Disc in inch – 22
  Distance between Consecutive Disc in inch – 18
  Cutting Blade Thickness in MM – 4
  Working Dept in inches – 6

  Read more
•

  AGRICULTURE ROTAVATOR (SL-2800)

  AGRICULTURE ROTAVATOR
  Model Name – SL-2800
  Facility of tractor PTO operated mechanism for Rotavator – Yes
  Type of hitch attachment/Linkage – 3-point linkage
  Type of gear box used – Multi Speed
  Type of Side Transmission Drive – Gear Drive
  Types of gear used – Spur
  Number of chain drive used – NA
  Availability of chain/Gear cover part for safety – Yes
  PTO speed required in rpm – 540
  Rotor Speed in rpm (with ± 10 rpm tolerance ) 200
  Shape of Cutting Blade L-Shape
  Type of cutting edge of blade – Plane
  Hardness of Edge portion – 40 to 55 HRC
  Hardness on Shank portion – 37 to 45 HRC
  Number of blade per Flange – 6
  Cutter Blade should be Dynamically balanced – Yes
  Number of flange in rotor – shaft 7
  Types of bearing used – Ball

  Read more
•

  CULTIVATOR (SL-500)

  CULTIVATOR
  Model Name – SL-500
  Type of Cultivator – Rigid Tyne Cultivator
  Number of Tyne used – 9
  Spring Index Number – NA for Rigid Tyne
  Warranty in Years – 1
  Number of Spare Shovel Supplied – 5
  Material of Tyne – High Carbon Steel

  Read more
•

  DEWATERING PUMPS (SL-3700)

  DEWATERING PUMPS
  Model Name – SL-3700
  Engine Capacity – 1.5 horsepower
  Impeller – Cast Iron of Grade FG200 of IS210
  Casing and Impeller Wearing Ring – Cast Iron of Grade FG200 of IS210
  Shaft Type – Chrome Steel
  Blade Material – Aluminium
  Sleeve – Brass
  Bracket – Others
  Suction Flange – Others
  Number of Stages – 1
  Number of Cylinder – 1
  Starting – Hand Start
  Capacity (Rate of Flow) ( m³/hr) – 50
  ISI marked – No
  Warranty (Years) – 1

  Read more
•

  DEWATERING PUMPS (SL-3700c)

  DEWATERING PUMPS
  Model Name – SL-3700c
  Engine Capacity – 8 horsepower
  Impeller – Stainless Steel of Grade 04 Cr13 of Is 6603
  Casing and Impeller Wearing Ring – Cast Iron of Grade FG200 of IS210
  Shaft Type – Stainless Steel
  Blade Material – Stainless Steel
  Sleeve – Stainless Steel
  Bracket – Stainless Steel
  Suction Flange – Stainless Steel
  Number of Stages – 2
  Number of Cylinder – 1
  Starting – Hand Start
  Capacity (Rate of Flow) ( m³/hr) – 900
  Warranty (Years) – 1

  Read more
•

  Flour Mill (SL-4600)

  FLOUR MILL
  Model Name – SL-4600
  Warranty of Flour Mill with electric motor in years – 1



  Read more
•

  FORAGE HARVESTER (SINGLE ROW) SL-4500

  FORAGE HARVESTER (SINGLE ROW) SL-4500
  Warranty in years – 1
  Power required in hp – 45
  Number of rows – 1
  Number of roller – 4
  Type of Roller – Plain
  Working width in mm (with ± 50 mm tolerance) – 600

  Read more
•

  HAND OPERATED KNAPSACK SPRAYER (SL-600)

  HAND OPERATED KNAPSACK SPRAYER
  Model Name – SL-600
  Type of Sprayer – Hand Operated Knapsack Sprayer
  Tank – Brass
  Lid or Cap – Brass
  Pressure Chamber – Brass
  Pump Cylinder – Brass
  Guide – Brass
  Hose Nipple – Brass
  Body and Cap (Nozzle Components) – Plastic
  Disc, Tip, Swirl Core ( Nozzle Components) – Brass
  Valve – Brass
  Spray Lance – Brass
  Body, Valve Stem, Valve Seat, Gland Nut, Cap and Collar (Cut-off device components) – Brass
  Strainer (Cut-off device components) – Brass
  Tank capacity (In Liter) – 16
  Availability of test report from central govt./NABL/ILAC accredited to prove conformity specification – Yes
  Warranty – 3 Year
  The diameter of the plunger shaft should not be less than – 12 mm

  Read more
•

  LASER LAND LEVELER (SL-3300)

  LASER LAND LEVELER
  Model Name – SL-3300
  Provision For Adjusting Tilt Angle of Blade – No
  Specified Accuracy of Laser Transmitter – 1.5 mm @30m
  Working Range Diameter of Transmitter In Meter – 800
  Power Source For Transmitter – Rechargeable battery (12V ,7A)
  Number of Tyre & Wheel Provided – 4
  Number of Hydraulic Cylinder – 1
  Warranty In Years – 1
  Main Frame Material – MS
  Bucket And Side Support Sheet Material – MS
  Working Width In Mm(With ± 50 Mm Tolerances) – 2100
  Scraping Blade Thickness In Mm – 10
  Side Blade Thickness In Mm – 10

  Read more
•

  MANUAL PADDY WEEDER (SL-1500)

  MANUAL PADDY WEEDER
  Model Name – SL-1500
  No. of Rotor – 2
  Warranty (M) – 6 Month

  Read more
•

  MULTI CROP PLANTER (SL-1800)

  MULTI CROP PLANTER
  Model Name – SL-1800
  Type of Seed Metering Mechanism – Call Feed
  Warranty in Years – 1

  Read more
•

  MULTI CROP THRESHER (SL-2900)

  MULTI CROP THRESHER
  Model Name – SL-2900
  Suitability of crop – Cereals
  Crop feeding system – Chute
  Type of thresher – Drum type
  Provision of changing blower speed – No
  Provision of adjusting concave clearance – No
  Number of fly wheel – 1
  Guard over propeller haft – Yes
  Warranty in years – 1
  Grain elevator for loading provided – No
  Size of threshing drum/cylinder in inch (with tolerance ±1 inch) – 14 x 27

  Read more
•

  MULTI GRAIN WINNOWER PADDY CLEANER GRAIN CLEANER (SL-1300)

  MULTI GRAIN WINNOWER PADDY CLEANER GRAIN CLEANER
  Model Name – SL-1300
  Capacity – 3-5 Ton per hour
  Power – Operated by Electric Motor (1.5-2 Horsepower)
  Warranty (A) – 1 Year

  Read more
•

  PAPER CUP (DONA) CUM PAPER DISC MACHINE KIT (SL-4700)

  PAPER CUP (DONA) CUM PAPER DISC MACHINE KIT
  Model Name – SL-4700
  Warranty in years – 1

  Read more
•

  PLOUGHREVERSIBLE MB PLOUGH (SL-3200 MB)

  PLOUGH/REVERSIBLE MB PLOUGH
  Model Name – SL-3200 MB
  Type Of Hitch Attachment::Linkage – 3-point linkage
  Type MB Plough – Non reversible type
  Mould Board Used – General purpose Mould Board
  Number Of MB Plough Attached To Beam – 2
  Working Depth Control Mechanism – Hydraulic
  Beam Rotation Control Mechanism – NA for non reversible MB Plough
  Warranty In Years – 1
  Material Of Beam::Frame – Alloy Steel
  Size Of Beam::Frame In Mm – 1100
  Material For Plough Blade – HCS
  Height Of Plough In Inch – 16
  Consecutive Plough Distance In Inch – 26
  Slice Blade Thickness In Mm – 9
  Working Depth In Inch – 12

  Read more
•

  PNEUMATIC PLANTER (SL-1700)

  PNEUMATIC PLANTER
  Model Name – SL-1700
  Seed: Fertilizer Hopper Sheet Material – GI (Galvanized Iron)
  Seed: Fertilizer Hopper Sheet Thickness In Mm – 0.63 mm or More for GI as per IS 6813
  Material for Furrow Opener – High Carbon Steel EN42
  Parking Stand Provided – Yes
  Warranty in Years – 1

  Read more
•

  POST HOLE DIGGER (SL-2700)

  POST HOLE DIGGER
  Model Name – SL-2700
  Auger Stabilizer control during operation and transportation – Hydraulic
  Warranty In Years – 1

  Read more
•

  POTATO DIGGER (SL-2600)

  POTATO DIGGER
  Model Name – SL-2600
  Total Length of elevator::Conveyor chain in mm – 1405 + 1130 (Double conveyor)
  Warranty in Years – 1

  Read more
•

  POTATO PLANTER (SL-1600)

  POTATO PLANTER
  Model Name – SL-1600
  Type of Potato Planter – Automatic
  Number of Furrow Openers – 2
  Type of Seed Metering Mechanism – Belt with cups
  Number of Rows of Cups Per Belt – 1 (Min) for automatic
  Warranty in Years – 1
  Seed Hopper Sheet Material – Mild Steel
  Seed Hopper Sheet Thickness in MM – 1.0 (Min.) for Mild Steel
  Provision of Parking Stand – Yes

  Read more
•

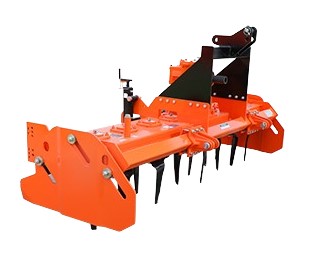

  POWER HARROW (SL-700)

  POWER HARROW
  Model Name – SL-700
  Power required in hp – 65
  Number of blades – 16
  Warranty in years – 1
  Working width in mm – 2000

  Read more
