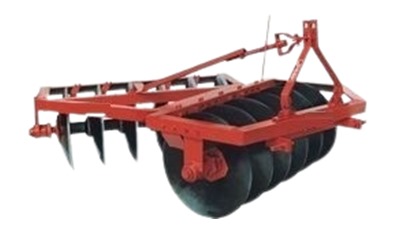

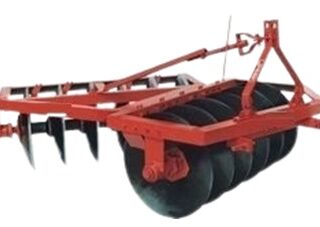

Agriculture Harrow – DISC TYPE (SL-100)
Agriculture Harrow (Disc Type)
Model Name – SL-100
Type of hitch attachment / linkage – 3-point linkage
Number of Harrow Row on which Cutting Disk Assemble – Double Row
Shape of Cutting Blade – Concave Disk Type
Type of Bearing used – Ball Bearing
Make of Bearing – NBC
Type of Wheel – Metallic Wheel
Position of Wheel Assembly on Harrow – Rear
Warranty in Years – 1
Material for Cutting Disc – Boron Steel
Diameter of Cutting Disc in inch – 22
Distance between Consecutive Disc in inch – 18
Cutting Blade Thickness in MM – 4
Working Dept in inches – 6
-
Model Name:
-
SL-100 – A robust and efficient disc-type agricultural harrow designed for soil preparation, residue mixing, and breaking clods for better seedbed formation.
-
-
Hitch Attachment / Linkage:
-
Comes with a standard 3-point linkage, making it compatible with most tractors and ensuring easy and secure attachment.
-
-
Disc Assembly Configuration:
-
Equipped with Double Row disc assembly, allowing better soil penetration, enhanced mixing, and effective pulverization of soil.
-
-
Cutting Blade Shape:
-
Features Concave Disc Type cutting blades, ideal for cutting through hard soil, crop residue, and turning the soil efficiently.
-
-
Material of Cutting Discs:
-
Made from high-quality Boron Steel, offering superior hardness, wear resistance, and long operational life.
-
-
Cutting Disc Diameter:
-
Each disc has a diameter of 22 inches, enabling deeper tillage and better soil cutting performance.
-
-
Distance Between Consecutive Discs:
-
The discs are spaced 18 inches apart, optimizing residue handling and soil inversion during operation.
-
-
Cutting Blade Thickness:
-
Blades are 4 mm thick, ensuring strength and durability in demanding field conditions.
-
-
Working Depth:
-
Designed to operate at a working depth of 6 inches, making it suitable for primary tillage in a variety of soil types.
-
-
Type of Bearings Used:
-
Equipped with NBC make ball bearings, known for their reliability, smooth operation, and minimal maintenance.
-
-
Wheel Type and Placement:
-
Fitted with a metallic rear wheel assembly, providing stability and balance during transport and fieldwork.
-
-
Applications:
-
Ideal for mixing soil, breaking up clods, incorporating crop residue, and preparing the field before planting.
-
-
Warranty:
-
Covered under a 1-year warranty, ensuring product support and peace of mind for the user.
-
-
Build Quality:
-
Sturdy construction and precision engineering make it durable for long-term, intensive agricultural use.
-
Only logged in customers who have purchased this product may leave a review.
Related products
-

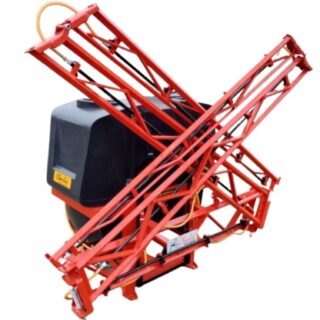

TRACTOR OPERATED BOOM SPRAYER (SL-2000)
